This page acts as a central navigation hub, consolidating all interactive browser-based demonstrations for MagTek devices. It provides essential links to demos for devices such as MMS Dyna products and V5 card readers, all within a structured documentation environment. The hub is designed to help developers quickly access the specific demo suite they need, facilitating efficient testing and integration of MagTek devices in Chromium-based desktop browsers.
Reference Section
Information Available
Supporting configuration guides, certificates, and technical documentation required to set up secure communication, device trust, and development environments for MagTek web-based demos and related services.
See MagTek readers in action and start from working code. This section collects runnable demos and sample code — including a browser-based demo you can try without installing anything — to validate your setup and give you a starting point for your own integration.
Reference Section
Information Available
A browser demo that runs the command set over WebHID.
This document provides instructions for using the browser-based MagTek Applications to configure and test MagTek devices, including MMS devices, specifically the DynaFlex family (including DynaFlex, DynaFlex Pro, DynaFlex II, DynaFlex II PED, DynaFlex II Go and DynaProx, models).
The Demo Applications enable comprehensive testing of a wide array of capabilities, including core payment functions like EMV chip and NFC transactions, MSR reading, barcode scanning, and PIN entry. Note that feature support is dependent on your specific device model. For instance, the DynaFlex II PED model supports PIN entry, manual card entry, and signature capture functionalities.
CRITICAL REQUIREMENT: For USB connected devices, these demos require a Desktop, Chromium Browser Only!
The MagTek Demo Applications rely on Web HID functionality for USB connected devices, which is not supported by mobile browsers (iOS/Android). You must use a desktop-based Chromium browser (like Google Chrome, Microsoft Edge, or Opera) for the demos to function correctly when using a USB connected device.
These documents provide instructions for using the browser-based MagTek Demo Applications to configure and test MagTek devices
Rev Number
Date
Notes
100
09/03/2025
Initial Release
101
3/16/2025
Added WebSocket information
Upon opening the Web HID Demo home page, the Main Page is displayed. This page serves as the central menu and is organized into the following categories:
MMS Devices – DynaFlex I/II device types and DynaProx (EMV, NFC, Barcode, PIN and MSR)
V5 Devices – iDynamo, eDynamo, mDynamo, tDynamo (EMV, NFC and MSR)
V5 MSR/Manual Entry – MSR swipe devices such as Dynamag and DynaPAD
V5 (SRED) Devices – iDynamo 5 Gen III (MSR)
Magensa Services – secure services for transaction testing
Miscellaneous – configuration and GitHub source access
Each section provides a corresponding demo page with user interface elements for connecting a device, issuing commands, and reviewing results see Figure 1.
Figure 1 - Demo Application Home Page
The MMS product family includes the following devices:
DynaFlex/DynaFlex Pro
DynaFlex II/DynaFlex II PED
DynaFlex II GO
DynaProx
Devices in this family generally support EMV, NFC, barcode, MSR, and PIN functionality, though specific features vary by model. The Demo Application connects through methods including USB HID, WebSocket (WSS), MQTT, or Bluetooth Low Energy (BLE), depending on the connection method enabled on your device.
This checklist provides a summary of the steps required for configuring and running a demo with your device.
Prepare Device: Power on the device (if there is a power button) and connect it via USB, Wi-Fi, MQTT, or BLE.
Open Demo Application: Launch the Web HID Demo in a desktop Chromium browser.
Configure Host App: Be sure to enter RMS, WebSocket, MQTT, and Contactless parameters prior to using the various demos.
Device Provisioning: If using WSS or MQTT, provision the device's network and security settings (as outlined in Section 3)
Open Session: Select Open and confirm a successful connection.
To test your setup and connection, choose a command (e.g., Start EMV ALL), paste command data if necessary, and select Send Command.
View Results: Swipe, insert, or tap a card, and observe the transaction log for the response and confirmation.
Note: For WSS connections, ensure the device's hostname (e.g., df-[SerialNumber]) is resolvable in your network. Also plan for periodic certificate renewal.
Bbrowser-based demonstrations for MagneSafe V5 Secure Card Reader Authenticators (SCRA), showing how to communicate with devices like iDynamo and eDynamo using Chromium-based desktop browsers.
Web-based demonstrations for V5 magnetic stripe reader devices such as Dynamag and DynaPAD, enabling developers to test card swipe data capture and command communication in non-EMV (manual entry/MSR) environments.
Browser-based demonstrations for MagTek MMS Dyna devices such as DynaFlex and DynaProx, showing how to communicate with Secure Card Reader Authenticators (SCRA) using Chromium-based desktop browsers for real-time command and response testing.
Interactive browser-based demonstrations for the iDynamo 5 Gen III, a secure card reader authenticator (SCRA) that uses MagTek's MagneSafe V5 (SRED) architecture.
Need Help?
For additional support, please contact MagTek Support:
Technical Support:
📧 Email: support@magtek.com
📞 Phone: 1-562-546-6800 (US)
🕐 Hours: Monday-Friday, 5:30 AM - 5:00 PM PST
Online Resources:
🌐 Support Portal: developer.magtek.com
Documentation Feedback:
Help us improve this documentation!
Try a reader in your browser with no install.
Need Help?
For additional support, please contact MagTek Support:
Technical Support:
📧 Email: support@magtek.com
📞 Phone: 1-562-546-6800 (US)
🕐 Hours: Monday-Friday, 5:30 AM - 5:00 PM PST
Online Resources:
🌐 Support Portal: developer.magtek.com
Documentation Feedback:
Help us improve this documentation!
Reference Section
Information Available
This document provides instructions for using the browser-based MagTek Demo Applications to configure and test MagTek devices, including MMS devices, specifically the DynaFlex family.
Need Help?
For additional support, please contact MagTek Support:
Technical Support:
📧 Email: support@magtek.com
📞 Phone: 1-562-546-6800 (US)
🕐 Hours: Monday-Friday, 5:30 AM - 5:00 PM PST
Online Resources:
🌐 Support Portal: developer.magtek.com
Documentation Feedback:
Help us improve this documentation!
These instructions detail the operational steps once all necessary configurations (Section 2) are complete. If connecting via USB HID, the steps listed in section 2 can be skipped.
The Human Interface Device (HID) protocol enables driverless plug-and-play connectivity for your device via USB.
Ensure the device is powered on and connected via USB.
If this is the first time, you may have to pair the device in the Chromium browser, which involves granting the website permission via a pop-up prompt.
From the Demo Application, select Open, and choose the appropriate device. A green check mark confirms the device is successfully opened.
From the command dropdown menu, select a command such as DynaFlex: START EMV ALL.
Select Send Command to execute the action.
Insert or tap a test card and monitor the transaction log for the response.

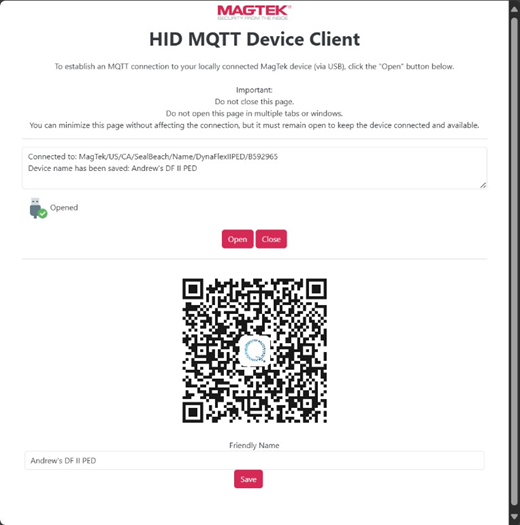

Figure 3 - HID MMS Demo
Message Queuing Telemetry Transport (MQTT) is a lightweight messaging protocol commonly used for Internet of Things (IoT) applications. It provides efficient, reliable communication between devices and applications, even in environments with limited connectivity. IMPORTANT: DynaFlex II PED is the only device that supports native MQTT. All other Dyna Devices must use the HID MQTT Device Client.
Key characteristics include:
Publish/Subscribe model – Devices publish data to a central broker; applications subscribe to receive data.
Low overhead – Messages are compact and efficient, suitable for embedded systems.
Real-time updates – Events such as card insertions are transmitted immediately to the Demo Application.
Within the HID MQTT Device Client and MQTT MMS Demo, this protocol enables MagTek MMS devices (e.g., Dyna Family Devices) to securely communicate via MQTT across operating systems.

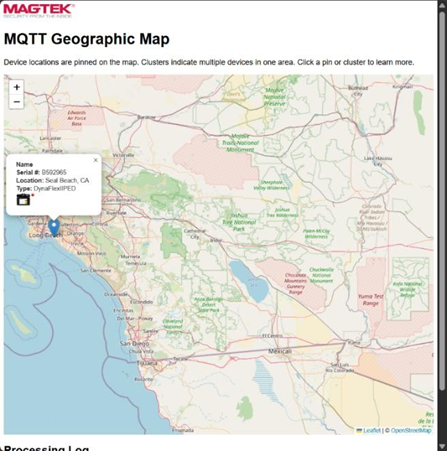

Figure 4 - MQTT Geographic Map

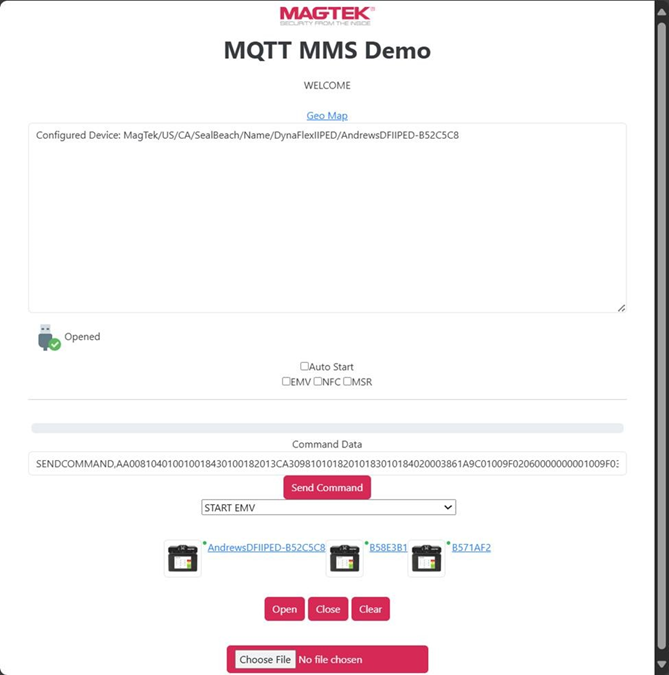

Figure 5 - MQTT MMS Demo
Configured Device – Identifies the active device.
Status Indicator – A green check mark indicates a successful connection.
Options – Auto Start, EMV, NFC, and MSR session checkboxes.

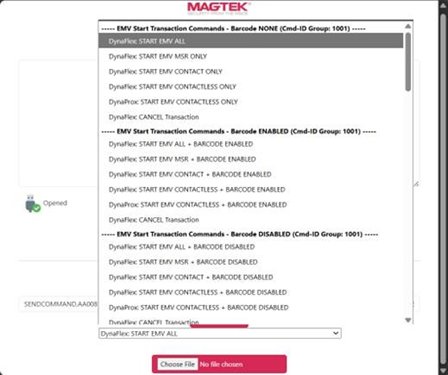

The command above, and others can be selected from the pulldown menu. The Choose File button allows the user to upload custom commands from a file. This screen also confirms device recognition, command formatting, and connectivity prior to further testing.
The HID MQTT Device Client acts as a communication gateway that transforms your locally connected MagTek device (via USB HID) into a remote asset. This allows other applications to access the device securely via the MQTT protocol. IMPORTANT: DynaFlex II PED is the only device that supports native MQTT which means it does NOT need to use the HID MQTT Device Client.
Power on and connect the device via USB.
Open the HID MQTT Device Client page.
Select Open within the client.
Scan the QR code or select the provided link to open the separate MQTT Device Demo Application.

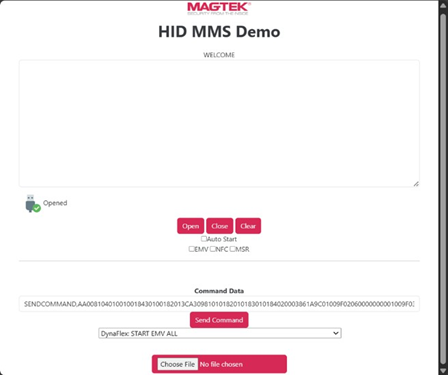

Figure 6 - HID MQTT Device Client
The MQTT Geographic Map displays device location and status for connected units, see Figure .
The MQTT Configuration page provides controls and parameters necessary for device operation over MQTT.
Device Status Panel – Displays device information (model, name, IP address, SSID) and records configuration progress.
Controls – Includes Open, Save Config, Reset Device, Close, and Clear.
Wi-Fi Settings – SSID and password configuration.

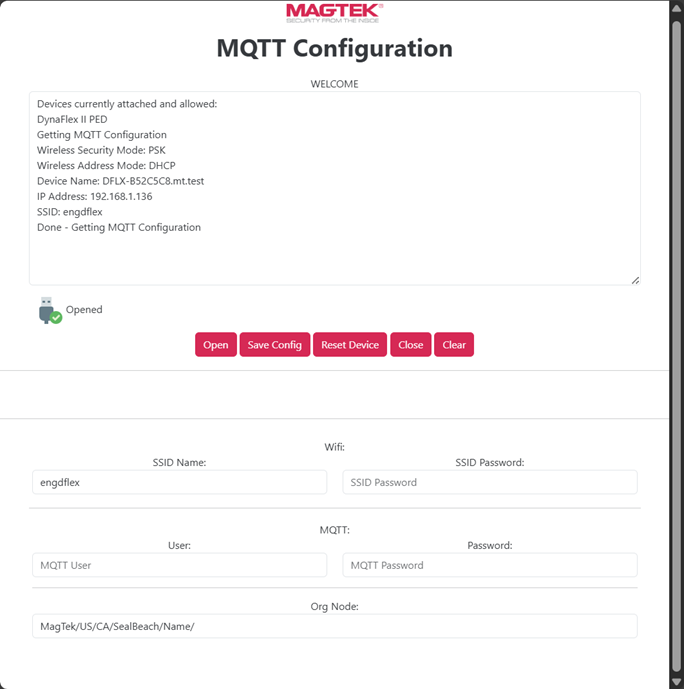

Figure 7 - MQTT Configuration
This interface is used to configure secure communication with WebSocket transport using TLS or mTLS. Functions include:
Network Settings – Get DHCP and Set SSID.
Wi-Fi Setup – Retrieve or assign SSID and password credentials.
Certificate and Trust Management – Load TLS/mTLS certificates, verify certificates, and generate or sign Certificate Signing Requests (CSR).

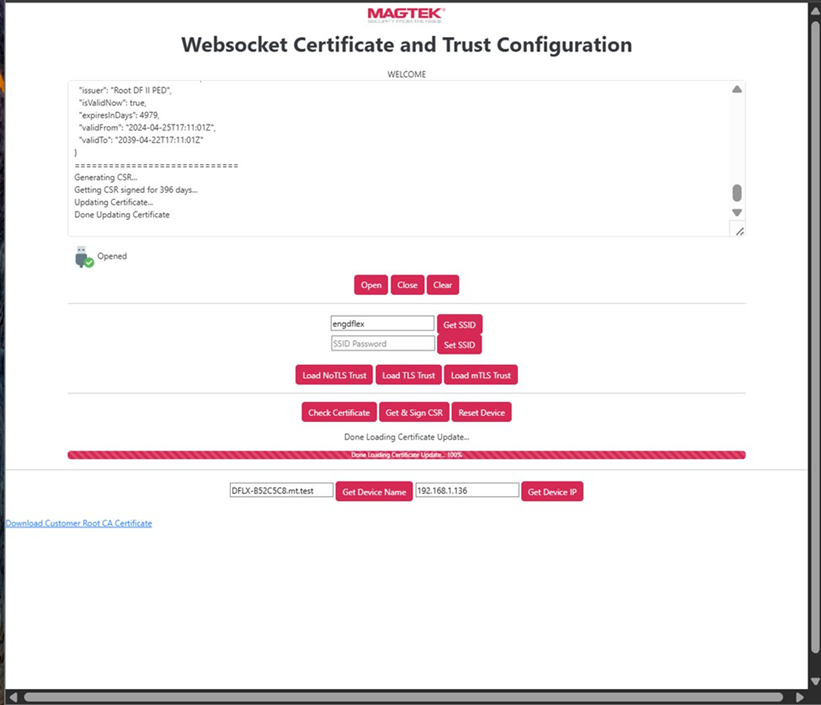

Figure 8 - WebSocket Certificate and Trust Configuration
When using WSS (WebSockets over SSL/TLS) with DynaFlex devices, the following technical considerations are critical for IT teams to ensure reliable and secure communication.
The default SSL certificate pre-installed on DynaFlex devices is uniquely generated for each device and tied to a hostname in the format df-[SerialNumber] (e.g., df-1234567). This certificate is used to establish the WSS connection.
SSL/TLS certificates are literal. The browser (or any WebSocket client) validates that the hostname used in the connection URL exactly matches the certificate's Subject Name or Subject Alternative Name (SAN). If the URL uses wss://df-1234567/ but the network appends a domain suffix (e.g., df-1234567.office.lan), the browser will reject the connection as insecure because the names do not match.
IP addresses cannot be used. Connecting via wss://192.168.1.50/ will trigger a SAN missing error because the certificate is issued to a name, not an IP address.
Therefore, the network must be configured to resolve the short hostname (e.g., df-1234567) to the device's IP address. The following options are available:
Option A: Global Search Suffix (Recommended) Configure the DHCP server to add a Connection-Specific DNS Suffix (via DHCP Option 15/119). This allows client computers to automatically map the short name to the device without manual DNS entries. Action: Add your local domain to the DHCP option list so that df-[SerialNumber] resolves correctly.
Option B: The "Trailing Dot" Override If DNS search suffixes are misconfigured or polluted, you can force the browser to look for the bare hostname by appending a trailing dot to the URL. Standard URL: wss://df-12345678/ (the OS may append the domain) Forced URL: wss://df-12345678./ (the trailing dot forces an exact hostname lookup)
Option C: CNAME or A-Record in Local DNS For networks with a central DNS server, create a static entry.
The WSS connection relies on a server certificate installed on the device. As of this writing, the demo application signs certificates with a validity period of 13 months. After expiration, any WSS communication will fail silently due to browser security policies—no manual override is possible for WebSocket connections.
Best Practice: Certificates must be replaced before they expire. A certificate update strategy must be employed when deploying devices in production using WSS.
Renewal Process: Use the WSS Certificate and Trust page to generate a new Certificate Signing Request (CSR) and load a renewed certificate. Refer to the steps for loading TLS trust and resetting the device.
Monitoring: Implement monitoring to alert administrators when certificate expiration is approaching (e.g., 30 days prior).
By adhering to these hostname resolution and certificate lifecycle guidelines, you ensure uninterrupted and secure WSS communication with your DynaFlex devices.
This page provides access to browser-based Web HID demonstrations for MagneSafe V5 magnetic stripe (MSR) devices, showing how to communicate with Secure Card Reader Authenticators (SCRA) like Dynamag using Chromium-based desktop browsers for non-EMV transaction testing.
Web Demo
Description
This page provides an interactive web-based demonstration for Dynamag and similar V5 HID swipe readers, enabling developers to connect via USB, send commands, and capture magnetic stripe card data within a browser-based testing environment.
This page provides centralized access to configuration guides, security certificate setup instructions, source code resources, and supporting documentation required to successfully deploy, secure, and integrate MagTek readers, using JavaScript and a wide array of web-based demos and related communication workflows.
For devices using MQTT or WebSocket (WSS), configuring your host application and provisioning the device itself is mandatory to establish a successful secure connection. If connecting via USB HID, all steps listed in section 2 can be skipped.
Before using MQTT or WebSocket (WSS), configuration is required. From the Demo Application Home Page, select Misc. → Configuration for the Demos.
Figure 2 - Miscellaneous Configuration and Documentation Pages
Configure the Demo Application by supplying the necessary API keys and server addresses.
This page provides an interactive web-based demonstration for MagTek MMS Dyna devices, showing how to communicate with Secure Card Reader Authenticators (SCRA) using multiple interfaces—including WebHID, MQTT, WebSocket (WSS), WebSerial, and WebBLE—for flexible, real-time device integration and testing.
This page provides an alternate web-based demonstration for Dynamag devices, offering a simplified interface for testing USB communication, command execution, and basic card swipe data capture workflows in a controlled browser environment.
Controls – Dropdown for pre-defined commands (e.g., START EMV) and Send Command button.
Device Instances – Displays connected devices with selectable IDs.
File Upload – Allows uploading of command scripts or batch test files.
From the MQTT Device Demo Application’s dropdown, select the required command, or use Choose File to upload a custom command script.
Select Send Command to execute the command remotely.
Once configuration is complete and saved, the user may proceed to execute commands such as Start EMV. See Figure 7 - MQTT Configuration.
Click Load NoTLS Trust
Next, reset the device.
For TLS/mTLS connections,
Click Load TLS Trust or Load mTLS Trust
Next, click Get & Sign CSR
Next, reset the device.
Controls – Open, Close, Clear, and Reset Device.
Device Identity – Display or update the registered device name and IP address.
Root CA Download – Provides access to the root certificate authority file for verification.
Error Condition: If the status window displays “OpenDevice No HID device selected or found”, ensure the reader is connected via USB HID prior to attempting certificate operations.
AA008104010010018430100182013CA30981010182010183010184020003861A9C0100
9F02060000000001009F03060000000000005F2A020840This page provides guidance on configuring certificates and trust chains required for secure MQTT communication between MagTek devices, local clients, and backend services.
This page provides instructions for setting up TLS certificates and trust relationships needed to establish secure WebSocket (WSS) connections with supported MagTek devices.
This page provides access to the source code repositories for MagTek web-based demo applications, enabling developers to review implementation details, customize integrations, and build upon existing JavaScript examples.
This page provides interactive examples demonstrating an assortment of various use cases for MagTek reader, the Qwantum Platform, etc.
This page provides legal and usage disclaimers outlining the terms, limitations, and responsibilities associated with using MagTek demo applications and supporting materials.
Web Demos
Description
This page provides setup instructions and reference materials for configuring MagTek web-based demo environments, including device connectivity, communication parameters, and required prerequisites for running web-based demos and Chromium Desktop browsers.
Enter and save the required settings.
RMS Options: Enter the Magensa API key and service URL
WebSocket Options: Provide the WebSocket server address.
MQTT Options: Specify the Org Node, broker address, client ID, and user credentials.
Contactless Options: Adjust timing parameters for NFC operations.
The separate MQTT Configuration page is used to provision your physical device with its Wi-Fi credentials and MQTT broker details.
Connect your device via USB HID.
Open the MQTT Configuration demo page.
Select Open to connect to your device.
Use the Wi-Fi Settings section to enter the device's SSID Name and SSID Password.
Use the MQTT Credentials section to enter the MQTT User, Password, and Org Node.
Select Save Config.
The device will record these settings, allowing it to connect to your broker over the network.
Connect the host PC to the same wireless network that your DynaFlex II PED device will be connected to.
Open this page using a Chromium Browser https://rms.magensa.net/TEST/demo/index.html
Plug in the device via USB cable
Click Misc and click WSS Certificate and Trust Config
Click Open button
Select DynaFlex II PED and Click Connect.
Enter Wireless Network SSID and password, then click Set SSID
If you want to connect via non-secure TLS connection, press Load NoTLS Trust, and press Reset Device
If you want to configure via secure TLS, press Load TLS Trust, then press Get & Sign CSR, then Press Reset Device
By clicking on the MAGTEK Logo on the top of the page, go back to the Miscm Menu and press Configuration for the Demos option
Enter device host name under WebSocket Options, for Non-secure TLS, just put ws://device-hostname, for TLS secure connections, enter wss://device-hostname (example wss://df-1234567)
Click Save
Go back to home page and press MMS Devices for EMV, NFC, BCR and PIN, then press WSS Device Demo
Allow other devices on your local network
Click on Open which will all open the connection to the device:
The terminal should display a green dot indicating successful connection:
Note: Configuration values must be entered and saved prior to establishing a secure session. Connection attempts without proper configuration will fail.
Note: Configuration values must be entered and saved prior to establishing a secure session. Connection attempts without proper configuration will fail.
NOTE: The device hostname must be resolvable to an address using either DNS name resolution or creating a host file entry. See section below providing some options on resolvable DNS name.
This page provides a local client application that enables MQTT-based communication with MMS devices, acting as a bridge for secure publish/subscribe messaging between browser demos and connected hardware.
This page provides an interactive demonstration of MQTT messaging with MMS Dyna devices, allowing developers to send and receive device data using a lightweight publish/subscribe communication model.
This page provides a browser-based demonstration of secure WebSocket (WSS) communication with supported MMS devices, enabling persistent, full-duplex, real-time data exchange over a single TCP connection.
This page provides an interactive WebSerial demonstration for MMS devices, allowing direct serial communication from a browser to test command transmission and device response handling.
This page provides a browser-based demonstration of Bluetooth Low Energy (BLE) communication with MMS devices, enabling wireless connectivity and data exchange using Web Bluetooth APIs.
Web Demo
Description
This page provides an interactive WebHID demonstration for MMS Dyna devices, enabling direct USB communication using Chromium-based browsers to send commands and receive real-time device responses.
iDynamo 6, eDynamo, mDynamo and tDynamo
These demos provide an interactive web-based demonstration for MagneSafe V5 Secure Card Reader Authenticators (SCRA), showing how to integrate JavaScript with EMV and NFC-capable devices in Chromium-based desktop browsers.
Web Demos
Description
This web-based demo shows how to communicate with Secure Card Reader Authenticator (SCRA) devices which implement MagTek's MagneSafe V5 system architecture using WebHID.
This page provides access to interactive browser-based demonstrations for the iDynamo 5 Gen III, a secure card reader authenticator (SCRA) that uses MagTek's MagneSafe V5 (SRED) architecture. The demos show how to communicate with the device using WebHID for direct USB connections in Chromium-based desktop browsers, as well as MQTT for network communication via a local client application. These tools are designed to help developers quickly test device functionality and understand the integration process.
This web-based demo provides a V5 Device Client application that enables MQTT-based communication with MagTek's MagneSafe V5 devices. This application acts as a bridge between USB HID devices and an MQTT Broker.
This web-based demo shows how to communicate with Secure Card Reader Authenticator (SCRA) devices which implement MagTek's MagneSafe V5 system architecture using MQTT via the V5 Device Client (MQTT).
Directs you to the companion client application required for MQTT-based communication. This local software acts as a bridge, enabling the iDynamo 5 Gen III to connect to the cloud-based demos and services that use the MQTT messaging protocol.
Web Demo
Description
Launches an interactive web-based demo that enables direct communication with an iDynamo 5 Gen III device from a Chromium browser. This tool allows you to test card reading, validate device connectivity, and experiment with MagneSafe V5 commands without writing any code.
